Operator Training

Training systems for firefighter operator training

Resource-efficient
Effective operator training
Realistic simulation

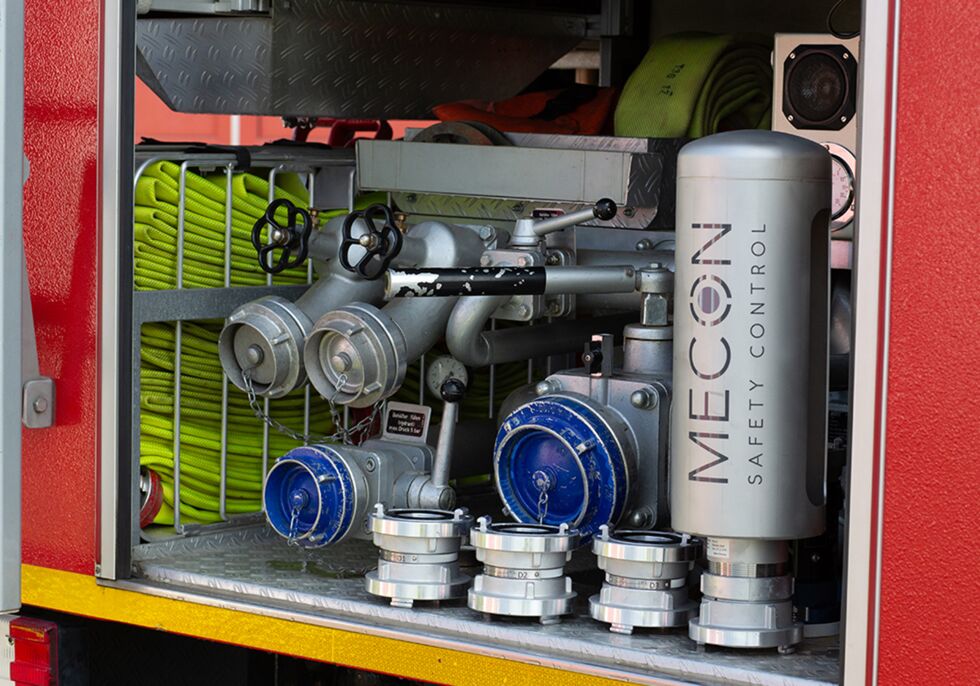

LWS - Long distance simulation

Training system for practicing large-scale operations through the simulation of 2 000 meters (6 560 ft) with only 8 hoses

The LWS offers an innovative and practical solution for training in long-distance water supply and optimal communication between firefighters. These skills are especially essential during wildfires, where water must be drawn from a river to penetrate deep into the forest. With the LWS, this critical scenario can be practiced realistically-even in a very limited space.

Instead of the usual 100 hoses used in real-life operations, the LWS requires only eight hoses and three nozzles that simulate pressure loss, while still providing a comprehensive training experience. This saves space, time, and resources without compromising on quality or efficiency.

Prepare your team optimally for real emergencies - with the LWS, the practical solution for realistic and effective training exercises.

Advantages at a glance

Space-saving and operational
Operable in very limited space
Promotes precise radio communication between operators
Only three operators and one instructor required
Less material usage, quick setup, short training times

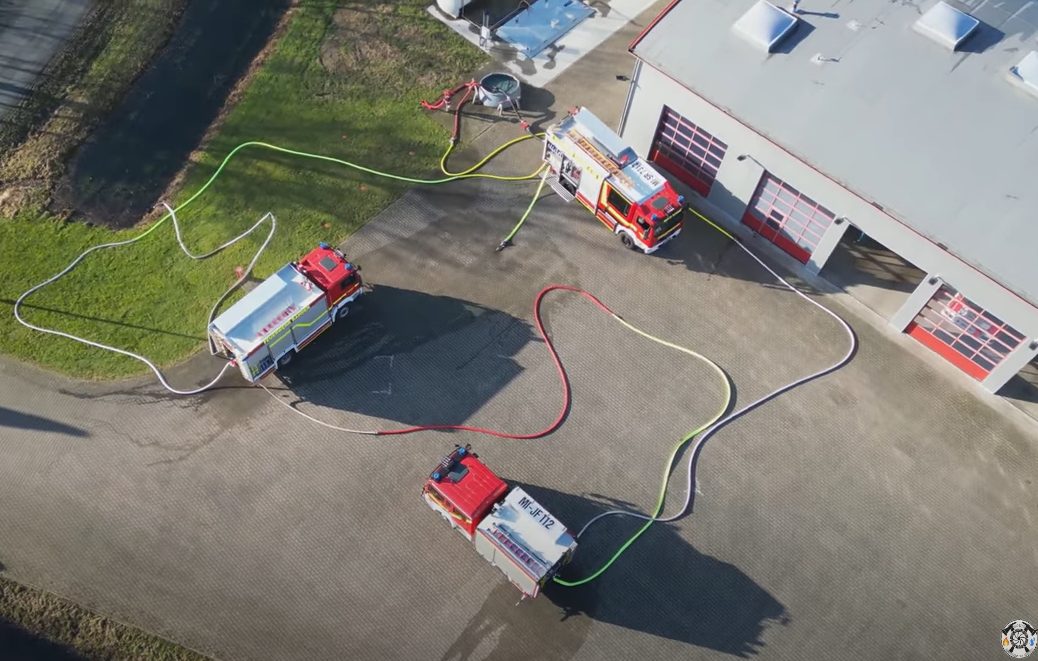

Setup LWS deployment simulation

A-suction hose
B-75 hose 5 m (16.4 ft)
Nozzle 1
B-75 hose 20 m (65.6 ft)
Water divider
Siamese coupling
Pressure safety valve + ball valve
Nozzle 2
Nozzle 3
Pressure reducer cylindric
Portable tank

Pressure values at approx. 1 000 l/min (264 USgpm)

Pump station	P (in)	P (out)
Supply pump (NKS)	-	10 bar (145 psi)
Relay pump (VKS1)	2 bar (29 psi)	10 bar (145 psi)
Relay pump (VKS2)	2 bar (29 psi)	8 bar (116 psi)

AST - Suction Simulation Trainer

Training system for handling pumps with decreasing suction performance

TheAST, Suction Simulation Trainer, is a realistic training system for firefighters to practice working with pump systems. The AST realistically simulates the behavior of the pump in various scenarios, such as blockages or leaks in the suction line, making it the ideal training system for driver / operator training.

The AST is installed between the suction hose and the pump using Storz A couplings. By adjusting the valve slider, decreasing suction performance can be simulated, as might occur due to a blocked suction hose, a clogged strainer, or a lowering water level in a cistern. Opening the ball valve introduces air into the suction hose, simulating situations such as a leaky coupling connection, a damaged hose, or a strainer that is not fully submerged.

Throughout the training sequence, participants learn the correct handling of pumps as well as the proper reading and interpretation of pump values.

Advantages at a glance

Space-saving and ready for immediate use
Realistic simulation of air ingress and increased suction resistance
Resource-efficient operation
Compatible with additional training systems

Technical data

	LWS	AST	Pressure reducer
Operating pressure	Max. 16 bar (232 psi)	Max. 16 bar (232 psi)	-
Flow rate	-	-	Max. 3 619 l/min (956 USgpm)
Medium	Water	Water	Water
Weight	Approx. 1.5 kg (3.3 lbs lbs) per nozzle	Approx. 8.8 kg (19.4 lbs)	Approx. 8.7 kg (19.2 lbs)
Dimensions	Approx. Ø 130 x 110 mm per nozzle	Approx. 370 x 280 x 190 mm (14.6 x 11.0 x 7.5 in)	Approx. 590 x 170 x 170 mm (23.2 x 6.7 x 6.7 in)

Support

Our training systems for the fire service are developed and tested in collaboration with Matthias Tkocz, an experienced operator instructor. On his YouTube channel, Scotty’s Maschinisten Channel, you will find videos about our training systems as well as content related to training and technology for the fire service.

For further information and questions about the products and their areas of application, please visit the Forum – Feuerwehr Schulungen und Seminare – at:

https://feuerwehrschulungen.de/forum/

or scan the QR code:

Product and accessories

The following products and accessories for the operator training systems are available.

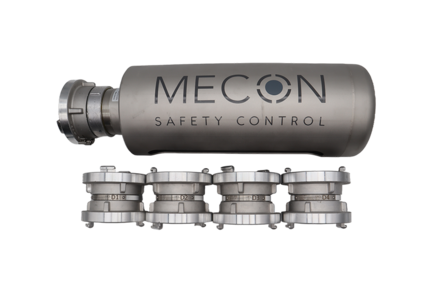

LWS Set 1

Consisting of four nozzles and a pressure reducer for simulating a 2 000 m (6 560 ft) hose length

LWS Set 2

Consisting of three nozzles for simulating a 2 000 m (6 560 ft) hose length

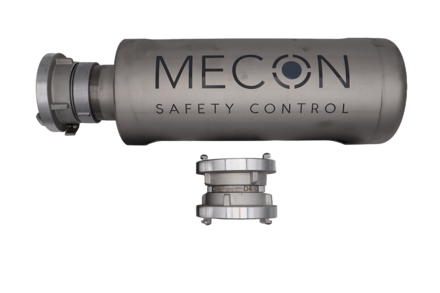

Pressure reducer cylindric

For up to 3 619 l/min (956 USgpm) without back pressure, including a universal nozzle for flow rates up to 2 000 l/min (528 USgpm)

Connection pipe

Stainless steel pipe with Storz B coupling to protect the hose at high flow velocities.

Replacement nozzle

Universal nozzle for using the pressure reducer without long-distance hose simulation

Regulation valve

Regulation valve for installation in the simulation section

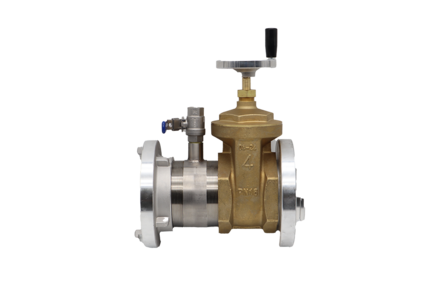

AST

Suction simulation trainer with Storz A connection, gate valve and ball valve

Product and accessories

Product	Version
4 Nozzles, pressure reducer Storz B cylindric	LWS0-Set1
3 Nozzles	LWS0-Set2
Nozzle, pressure reducer Storz B cylindric	HTLDV080/Z
Connection pipe with Storz B	ZB-HTL-010
Replacement nozzle for pressure reducer Storz B cylindric	ZB-LWS-001
Regulation valve for installation in the simulation section	HTLAR080
Suction Simulation Trainer consisting of a 4“ gate valve and a 1/2“ ball valve	AST0

FAQ – Operator training

What is the universal nozzle / replacement nozzle used for?

The pressure reducer generates no back pressure at flow rates of up to 3 619 l/min (956 USgpm). As a result, the hose is not stabilised during use without the three nozzles of the LWS. The universal nozzle / replacement nozzle produces a slight back pressure to stabilise the hose and protect it from damage.

Why is the pressure reducer cylindrical?

The pressure reducer can be placed directly into a portable tank. Due to its cylindrical design, there are no sharp edges or corners that could damage the tank.
