AUTOMATIC FLOW DETECTOR TESTER IN WET SPRINKLER SYSTEMS
- Sprinkler system remains operational
- Cost-effective testing method, only one person needed
- Reduction of error susceptibility due to pre-wiring
ZONE-LUX®
The simplified and resource-saving solution through direct connection of signal lines and power supply
In the past, flow detectors had to be tediously tested by hand, with the system being shut down during the test of each detector, and additional water had to be fed into the line. At least two people were required for the process: one to manually perform the test, another to monitor the alarm signal.
Our testing procedure allows testing of all flow detectors installed in a sprinkler system while keeping the system operational. A time-saving solution where a functional test can now be performed by one person within minutes on all sprinkler units within a system. Monitoring of short circuits, wire breakage, and tampering is also possible through the recording of resistances.
The compact assembly unit enables quick and resource-saving automatic remote testing (e.g., via key switch or fire alarm control panel BMZ). Unlike manual testing, no additional water is required, reducing the tendency for corrosion in the sprinkler lines.

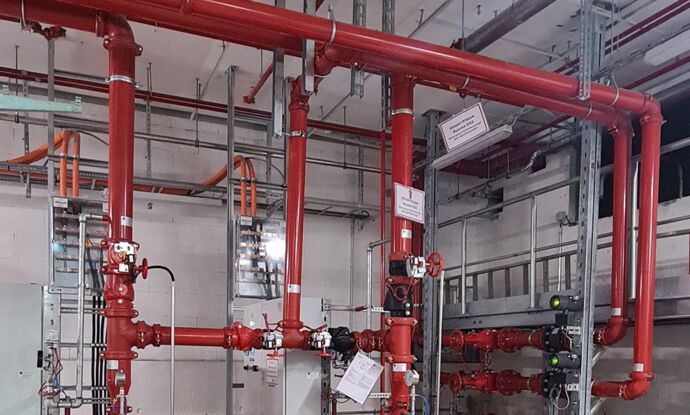

For use in stationary fire protection systems, for the detection and combating of fires, flow detectors are used in wet sprinkler systems. The FM and VdS approved Zone-Lux® - an automatic flow detector tester is installed in fire protection systems for flow monitoring and testing of sprinkler lines. When a predefined water flow within the sprinkler line is reached, a signal from the flow detector is relayed to the fire alarm control panel for monitoring and quick localization of fires.
Requirements/Conditions: VdS CEA 4001; DIN EN 12845
According to VdS CEA 4001 and DIN EN 12845, flow detectors in wet systems must undergo functional testing at quarterly intervals. From the time of operation of the testing device to the alarm signal, a maximum of 2 minutes may elapse. Behind each flow detector, a testing device must be provided to simulate the operation of a sprinkler. Further requirements include:

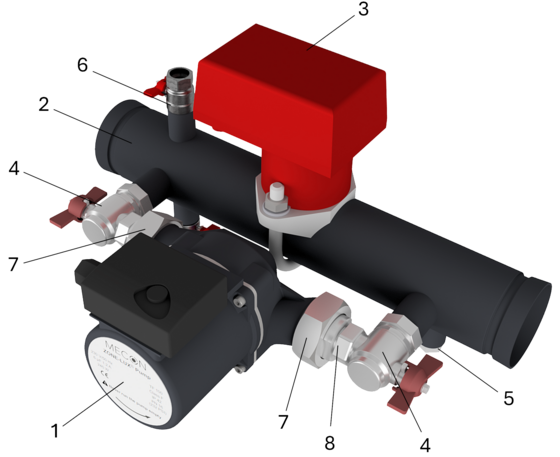

consisting of main pipe, valves, pump, and flow detector
(Direct control) - e.g. with key switch
In addition to basic including connection box and optionally with pre-wired control for all VdS approved fire alarm control panels

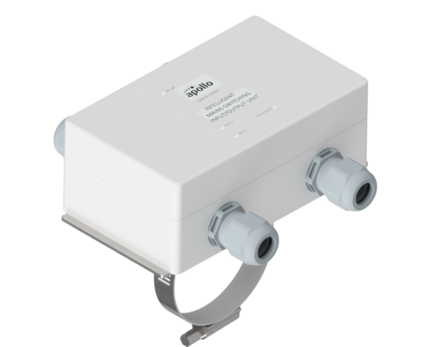

(addressable - Apollo Module)

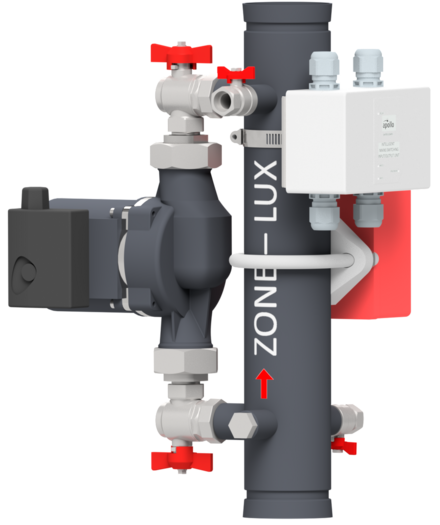

In addition to basic including connection box, Apollo Module (addressable) and optionally pre-wired control.
(conventional)
For wiring of individual components including pipe mounting set for easy installation on the main pipe.
For wiring of individual components including pipe mounting set for easy installation on the main pipe.
(Communication - Apollo Module)

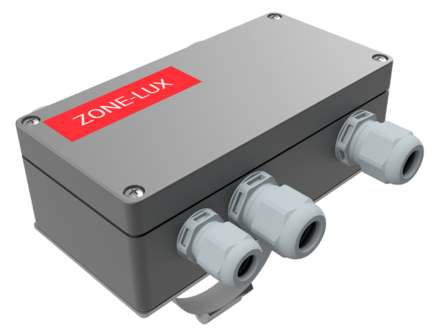

Connection box (Communication - Apollo Module) for wiring of individual components including pipe mounting set for easy installation on the main pipe
To install the ZONE-LUX® as efficiently and error-free as possible on-site, we already take care of the sometimes tedious and error-prone connection of all components in the factory - and that with tested quality. With this option, you receive a directly installable solution with a test certificate. This eliminates the need to connect the pump and flow detector on-site. In a simple and individually adjustable connection box, only the power supply and signal lines need to be laid out – so you have more time for the essentials.
Due to structural requirements, it may become necessary to place the pump on either side of the main pipe (space is not available on both sides).
The total installation length is 400 mm. By using an optionally available adapter piece, this can be extended to 450 mm.
ZONE-LUX® is approved for an operating pressure of up to 16 bar (232 PSI) FM and VdS.

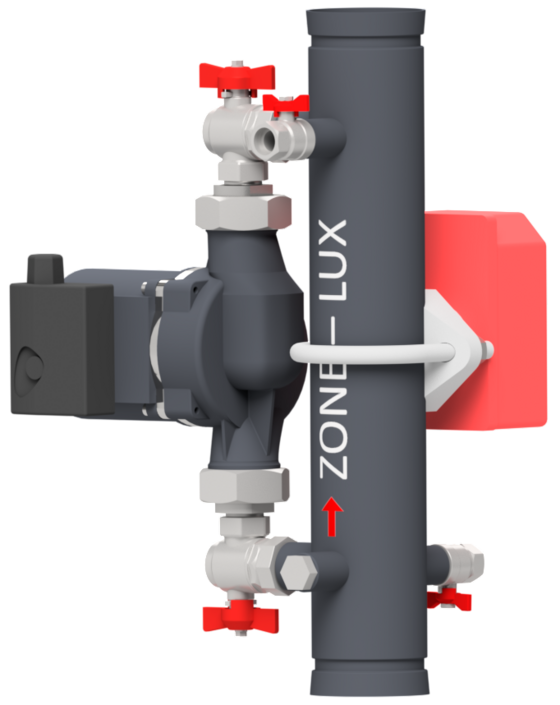

ZONE-LUX® Basic Version
This version is delivered without connection box and wiring.
Scope of delivery: Main pipe, valves, pump, and flow detector
Version | Nominal Width |
---|---|
ZLB0-E# | DN 50 (Ø 60.3 mm) left or right |
ZLB0-F# | DN 65 (Ø 76.1 mm) left or right |
ZLB0-G# | DN 80 (Ø 88.9 mm) left or right |
ZLB0-H# | DN 100 (Ø 114.3 mm) left or right |
ZLB0-K# | DN 150 (Ø 168.3 mm) left or right |
ZLB0-X# | DN 150 (Ø 165.1 mm) left or right |
ZLB0-L# | DN 200 (Ø 219.1 mm) left or right |
Download
Download
Download
Download
Download
Download
