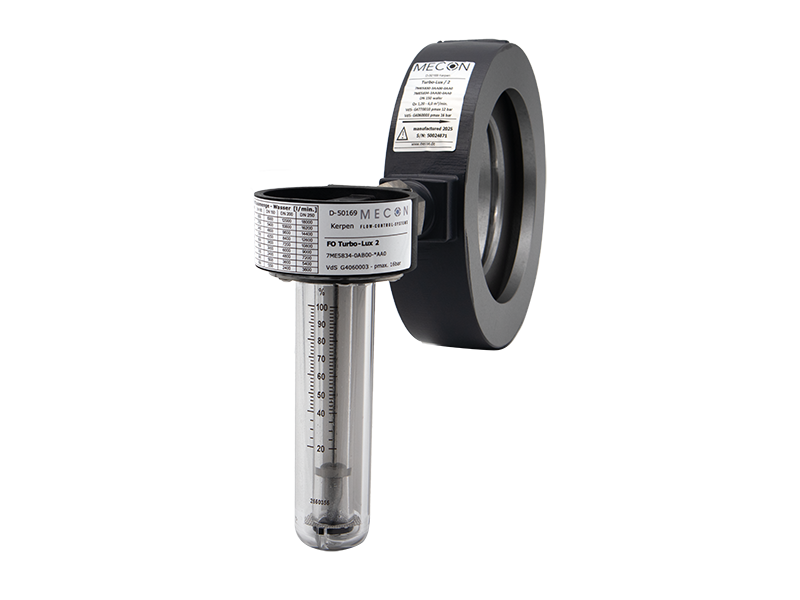

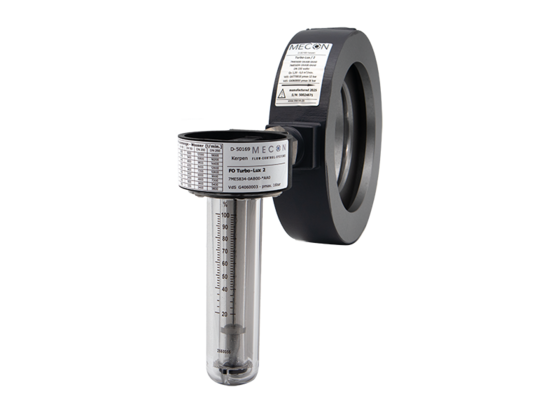

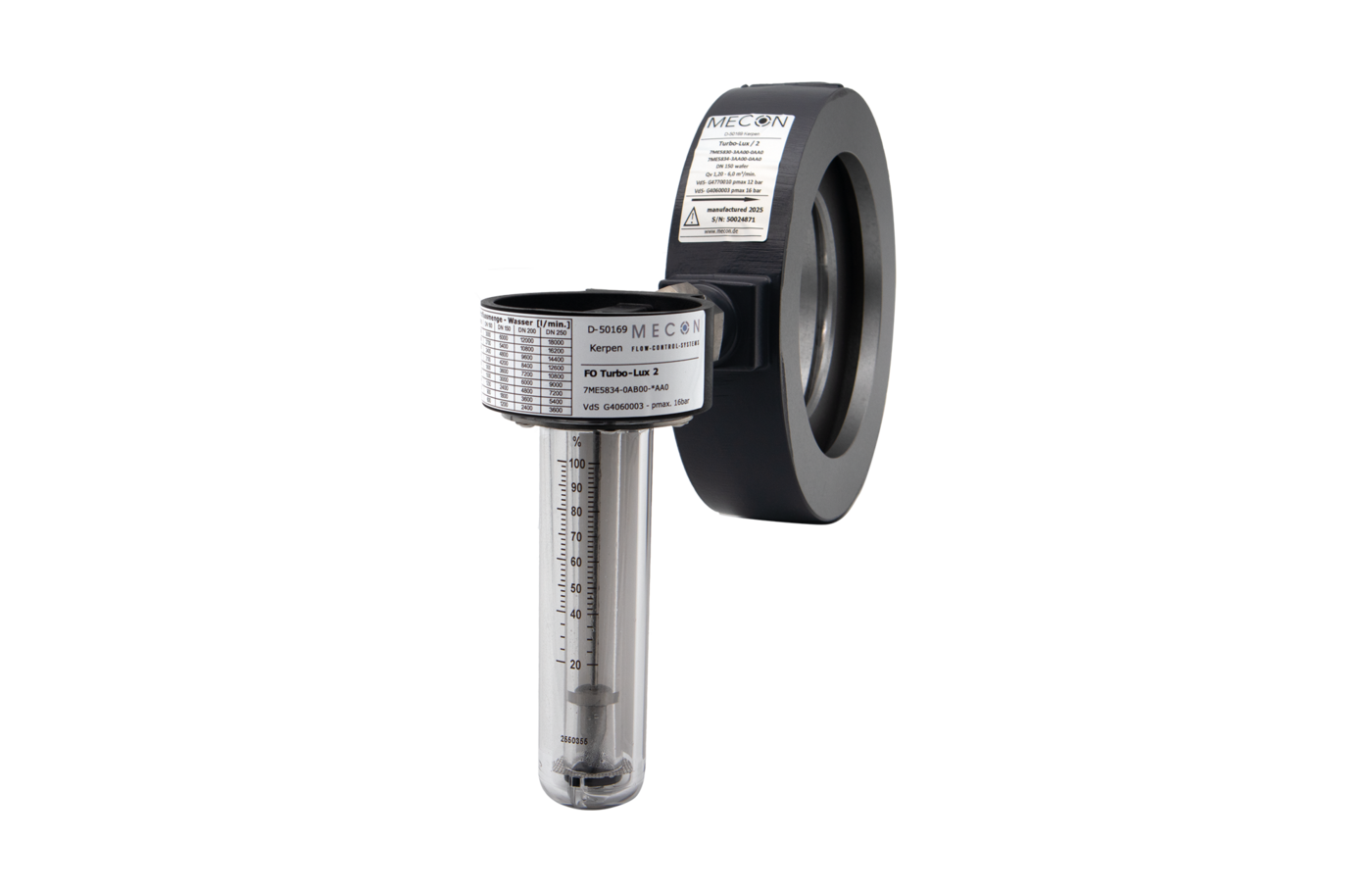

Turbo-Lux® 2

Fire pump test meter with VdS certification, intermediate flange version for stationary fire extinguishing systems

The Turbo-Lux® 2 orifice flow meter is the second generation of the Turbo-Lux® device family and is also available as an intermediate flange version. In addition to the familiar easy installation and extremely precise measurement accuracy, the VdS-certified Turbo-Lux® 2 impresses with lower purchasing costs compared with its predecessor.

580.70
incl. VAT.

Accessories

Article number
Product
Price per unit*
7ME5834-1AA00-0AA0
Orifice Plate DN 80 (Qv: 0,42 ... 2,1 m³/min.)
211.68
7ME5834-2AA00-0AA0
Orifice Plate DN 100 (Qv: 0,6 ... 3,0 m³/min.)
226.77
7ME5834-3AA00-0AA0
Orifice Plate DN 150 (Qv: 1,2 ... 6,0 m³/min.)
236.83
7ME5834-4AA00-0AA0
Orifice Plate DN 200 (Qv: 2,4 ... 12,0 m³/min.)
307.27
7ME5834-5AA00-0AA0
Orifice Plate DN 250 (Qv: 3,6 ... 18,0 m³/min.)
527.04
7ME5834-0BA00-0AA0
Centering Assembly DN 80 PN 16
85.86
7ME5834-0CA00-0AA0
Centering Assembly DN 100 PN 16
92.56
7ME5834-0EA00-0AA0
Centering Assembly DN 150 PN 16
136.20
7ME5834-0FA00-0AA0
Centering Assembly DN 200 PN 10
136.20
7ME5834-0KA00-0AA0
Centering Assembly DN 200 PN 16
166.39
7ME5834-0GA00-0AA0
Centering Assembly DN 200 PN 10/16
178.11
ZB-TL2P0-002
Replacement Cap
36.32
7ME5834-0AA10-0AA0
Transport case
128.28

*inkl. MwSt.

Areas of application:

The Turbo-Lux® 2 orifice flow meter is used to measure the volume of water in closed pipelines. The installation position and direction of flow are flexible. The areas of application focus on measuring flow quantities in stationary water-based extinguishing systems for use in water supply test pipes. The required certificate from VdS Schadenverhütung GmbH has been obtained.

The fire pump flow meter with VdS certification is used in the following industries:

  • Fire safety (stationary sprinkler systems- fire pumps)

Advantages of the fire pump flow meter:

  • Nominal sizes from DN 80 ... DN 250
  • Measuring ranges from 420 ... 18,000 l/min
  • Measurement accuracy ±2,5 % from the measuring range limit value
  • Any installation location, installation position and flow direction possible
  • Strong vibration resistance
  • Display in %
  • VdS certificate 2344, 2100-29
  • Centring kit (optional)
  • Calibration certificate (optional)
  • Available at short notice

Measuring tube connections:

  • Intermediate flange
  • Calibrating measuring devices
  • Maintenance and servicing
  • Provision of tender texts
  • Provision of technical component drawings for implementing the devices in fire safety systems



FAQ - Fire pump flow meter for sprinkler systems - Turbo-Lux® 2

Can the orifice plate of the Turbo-Lux® 2 also be used for the Turbo-Lux®?

Yes, the orifice plate is suitable for both devices.

Under which product code can I find the orifice plate, the centering assembly and the replacement cap for the Turbo-Lux®?

These accessories are shown via the product code of the Turbo-Lux® 2.

Where can I find the serial number of my orifice flow meter?

It is listed on the bypass flow meter under the scale.

Where can measuring accuracy certificates be downloaded subsequently?

Via our homepage – under the following link you can find the instructions how to do this:
