Liquid Level Indicator without Auxiliary Energy


  • Magnetic flap indicator for a wide range of applications across various industries
  • Robust metal construction, maintenance-free
  • Measurement ranges from 0.2 to 5.0 m (further ranges available upon request)

Level indicators by MECON

MECON has been specialising in the development of advanced level indication measuring equipment and level indications for decades. The solutions for industrial level measurement technology are particularly impressive for continuous measurement and monitoring of the level in containers of any shape with high precision – whether open or closed. The measurement result is never affected by the operating pressure. Various materials are also available in different applications, for contact with the medium.

Advantages of mechanical level indicators:

  • Universal applications in almost all types of liquids
  • Simple robust design with magnetic measurement transfer (without auxiliary power)
  • Powerful magnetic coupling system without mechanical transfer elements
  • No hydraulic connections between the display part and the medium
  • High legibility even from great distances
  • Also available for high pressures and temperatures
  • Large measurement/display range. From 200 mm to 5000 mm. Also in separate version
  • Also available with magnetic flap display, percentage scale and 4 – 20 mA output
  • Any number and layout of contacts: only limited by contact housing dimensions
  • Easy to install
  • Low-maintenance

Service for Product Solutions:

Discover our services that enhance your product solutions. Benefit from MECON GmbH's extensive knowledge. From custom special solutions to reliable maintenance and calibration of your components. In the downloads section, you can find all relevant information for the use and planning of product solutions – we are your partner for excellent service.




Development of Custom Solutions

MECON GmbH optimizes your product range with customer-specific adaptations from batch size one. From design to the manufacturing of prototypes and series production, you get everything from a single source.

Custom Solutions

Calibration

Verification of the measurement accuracy of flow meters. In the nominal width range from DN 2 to DN 800, we check your devices, including those from other manufacturers, on our water test benches with reference devices according to EN 17025.

Book Calibration

Maintenance, Repair, and Returns

Regular maintenance of heavily used devices is recommended to ensure smooth operation of your measurement technology over the years.



Order Now

Downloads

Here you have access to all documents, operating instructions, BIM data, test certificates, technical datasheets, technical drawings of the devices in various formats, and certificates for free download.

General Downloads

Download Test Certificates

Schedule a Consultation

If you have any questions, please call or write to us!

We look forward to hearing from you and are happy to call you back.

Schedule a Consultation!

Your contact person:

Portät
Portät

Michael Jüch
Technology

T: +49 (0)2237 60006-14

Follow us on linkedin Follow us on LinkedIn

Level measurement technology

Measurement principle of level indicators

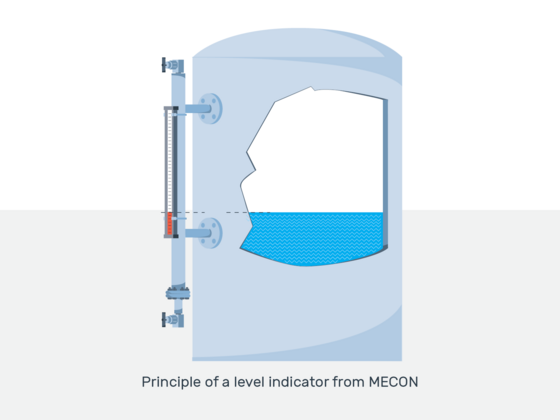

MENKAR operates as a level indicator based on the float principle. In a system of communicating pipes, the medium flows from the container through a connecting line at the bottom into the downpipe. As a result, the height of the float it contains is always equal to the respective level of the medium in the container. If the level changes, the float moves, which is transferred by a magnet integrated in the measurement float. With the MENKAR KM, the transfer is implemented to the magnetic flap by rotating from white to red. The red side shows the respective level. By contrast, with the MENKAR KA the level is transferred to the float indicator. In addition to this, there are optional contact devices, which are also activated by the float. The magnetic transfer is always contactless and without additional auxiliary power.

Structure of the fill level meters

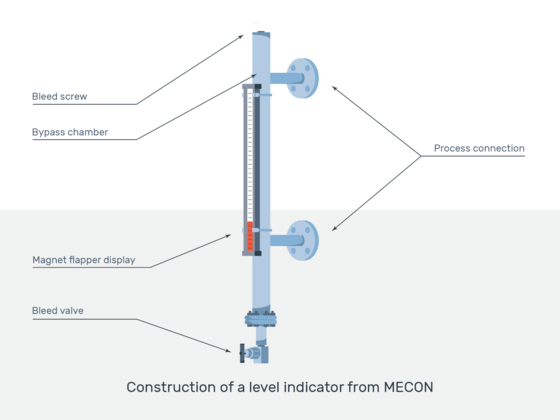

The MENKAR level indicator is attached to the container to be monitored with two flanges. The bypass chamber contains the float with the medium to be measured. Depending on the design, the measuring float can be fitted with a radially symmetrical magnetic system. Depending on the design, the flap magnetic indicator and the switching and measuring elements are located outside the bypass chamber. Depending on the requirements, you can also use drain screws or valves as well as various venting options.
